Eot Cranes

Eot Cranes

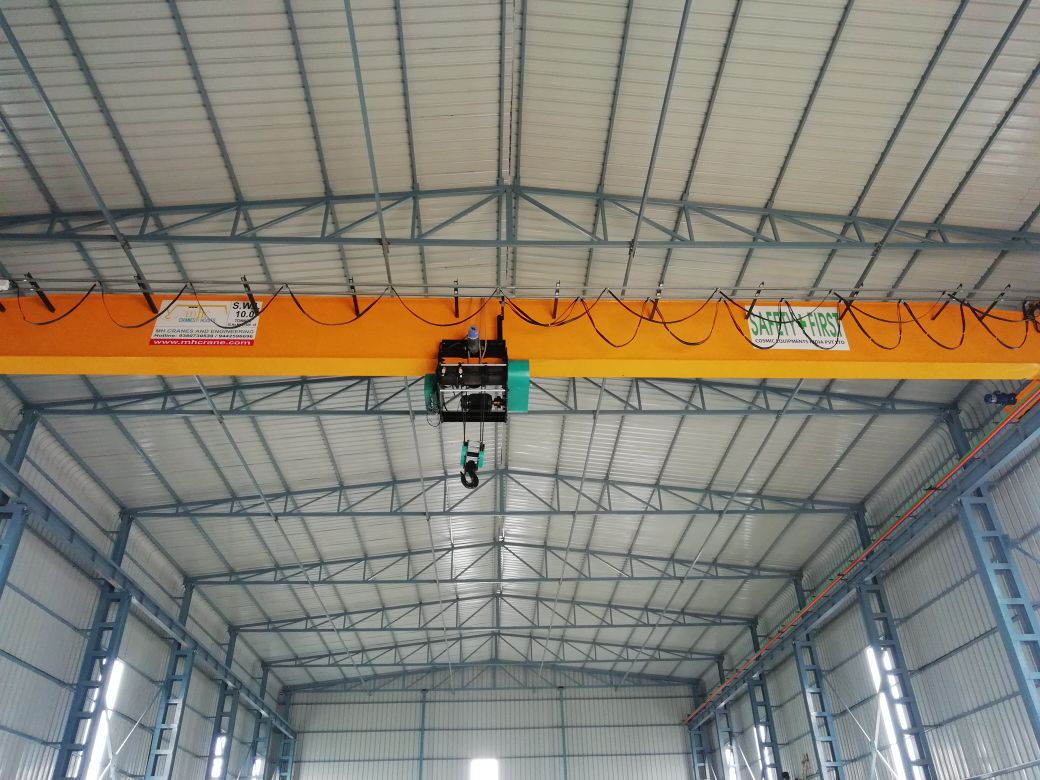

Single Girder Cranes

Single girder cranes are designed to cover a wide range of modern industrial demands, providing excellent value for money with no compromise on performance. MH CRANES Single Girder Eot Crane Manufacturer in Chennai and Single Girder Eot Crane Suppliers in Chennai has reduced wheel loads, saving costs on new support structures and increased lifting capacities on existing structures.

MH Cranes offer various crane beam and end carriage constructions to ensure optimum use of headroom available. Hoists are offered as standard in low headroom format running on the bottom flange of the beam.

Manufactured and supplied up to 60 Tons with the span of 30 m.

Whereas we have the facilities to manufacture the carne up to 120 Tons.



Double Girder Cranes

Double girder cranes give a better height of lift in a given headroom as the hook travels between the beams. They are available in higher capacities than single girder and for heavy duty applications they can be supplied with open winch or closed hoists.

Better height of lift in given headroom as the hook travels between the beams.

They are available in higher capacities than single girder.

Heavy duty applications they can be supplied with open winch or closed hoists

Manufactured and supplied up to 60 Tons with the span of 30 m.

Whereas we have the facilities to manufacture the carne up to 120 Tons.



Gantry Cranes

Goliath-cranes are available in both single and double girder format. It is ideal for outdoor applications where lifting facilities are provided without the cost of a building or any supporting steelwork. They are also suited to indoor applications where existing building structures are not suitable to take overhead cranes, and where additional supporting steelwork would result in a loss of floor area. Goliath-Cranes can be constructed with a cantilever to allow handling outside the rail centers. Typical applications for this type of crane include steel stock yards, loading areas, the concrete industry and ship building.



JIB Cranes

Jib-cranes are available in a wide range of standard formats in capacities from 125 kg to 5000 kg. Larger specially designed options are available on request. We offer two formats of jib-crane, the pillar or post-mounted jib and the wall or column mounted. Each of these may be equipped with chain hoists or wire rope hoists with the additional options of electric travel and electric slewing gear. The jib arm may be under or over braced to maximize height of lift or travel.

Post-mounted jibs can be constructed to provide a slewing angle 360°. Fixed jibs and monorail solutions may be appropriate for other applications.Wall travelling jib crane also available.



Portable Cranes (A Frame)

Lightweight portable gantries are available to meet needs of warehouse and small workshops. These cranes can be easily dismantled and transported to another location in a truck.

The portable gantry crane is provided with solid rubber or rubber tyred caster wheels that move on warehouse floor. The gantry can be easily pushed manually at desired location. The portable gantry crane is available in capacities ranging from 125 kgs to 2,000 kgs with a span up to 5 meters. These cranes are best suitable for light duty application and are much more economical than permanent shop cranes



Underslung crane

We are a leading underslung crane manufacturer and supplier in India that can design, manufacture and supply customized underslung cranes. Suitable to handle loads from 250 kg to 10 MT, our underslung cranes are known for less dead weight and low head room hoist. Clinging to the roof of a structure, underslung cranes can work wonders at a site with limited headroom

Single or Double girder Underslung Crane



Light Crane System (LCS)

  • Our Light crane systems offer versatile material handling solutions with ergonomic and efficient workflow.
  • It reduces fatigue in the handling and enhances productivity.
  • Light crane systems are the best option for tasks that require precision in small spaces, where a stable lifting capacity is necessary.
  • We provide light crane systems in the form of XY cranes with high quality standards in a wide range of varieties and capacities as per customer’s requirements.
  • Light crane systems can be custom – made to your specific application requirements precisely, quickly and efficiently.
  • Less vibration and low noise level.
  • Low maintenance cost with prolonged service life.


Engineering Cranes

Engineering and special application oriented cranes are manufactured upon special request.
